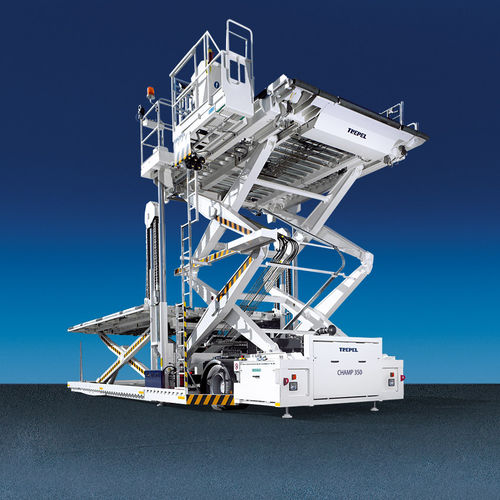

Scissor high loader CHAMP 350

telescopicfreightdiesel

The unique load capacity of 35 tons on the main and front platform makes the CHAMP 350 the most capable high loader in the world. Its diversity and adaptability to specific market requirements, available tailor-made ex-factory, make this model an absolute CHAMP in air cargo operations. Performance Dimensions (L x W x H) 13.100 x 4.500 x 3.870 mm (standard configuration) Lifting height front / main platform 2.100 to 5.600 mm / 490 to 5.600 mm Loading width (between guide rails) 3.310 mm Driving speed 10-13 km/h Gradability 5 % Turning radius 16.000 mm Design Engine Deutz 4-cylinder diesel TCD 2012 L04 2V (COM IIIA / EPA-TIER3) Other engines or emission class on request. Transmission / axles Open circuit hydrostatic drive system on steering front axle, bogie wheel system on rear axle Steering Hydraulic power steering Braking system Dual circuit hydraulic multiple wet disc brake, additional spring-loaded emergency parking brake, dynamic brake system Stabilisers 6 hydraulically operated stabilisers Conveying system Zinc-plated steel rollers for longitudinal transfer, side loading and rotating on rear of main platform, side loading on front of main platform, hydraulically operated stops and guide rails on main platform Hydraulic system Central hydraulic valve block, valves fitted with control light, electrically powered hydraulic emergency system to lower platforms and lift stabilisers Electric system 24V, relay controlled
