Control software

meteorologicalaeronautical

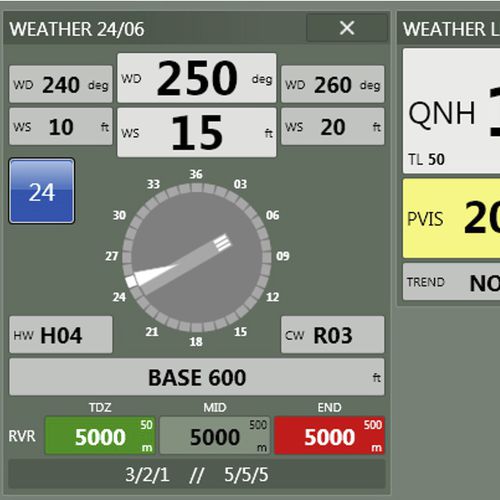

meteorological data for air traffic controller automatic regulation of luminous intensity of airfield ground lighting equipment Connection serial lines RS-232 or TCP/IP working site Meteo is connected via the LAN network Representation basic meteorological data are shown in the report “Airfield ground lighting” at the top part of the screen in meteorological ruler, this ruler contains a selection of the most important meteorological data color shading gives to the air traffic controllers information about trend of the measured data, or about manually entered values remaining meteorological data (among others also QFE) are in the data windows Metreport, which can be opened from the top bar extended meteorological information is shown in the data window Meteo it is possible to switch representation of meteorological in requested runway directions tendency of the runway visual range is expressed by color shading of RVR, if the visual range is below 1500 m: Yellow steady state Red deteriorating state Green improving state System provides the following information direction and strength of wind with max and min values RVR if it is measured on RWY at corresponding number of measuring points value BASE VIS general visibility QNH WX temperature dew point bottom base of clouds Meteo information (RVR) is used for automatic control of luminous intensity of individual sets.
