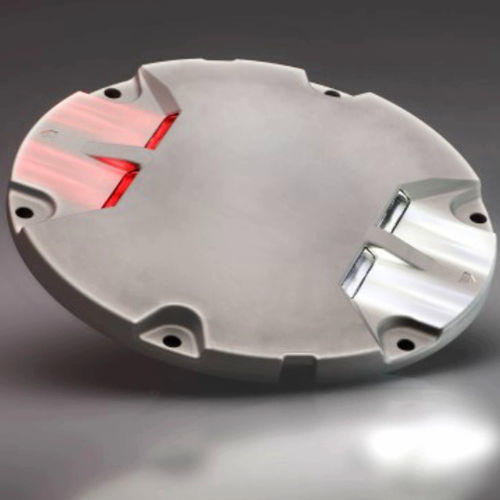

Runway edge light REH

for airport runwayLEDred

Reduced CO2 emission by up to 85 % Up to 50,000 hrs LED service life This fixture is also available in CEDD® Reduce maintenance and repair by up to 70 % TKH Airport Solutions inset lights are efficient and high-performing LED lights, providing at least 50,000 hours of service life at full 6.6A operation. The LED light fixtures have a simplified modular construction, consisting of five main components: • Aluminum forging cover plate, with mechanical load capabilities exceeding FAA requirements • Interchangeable LED light module • Electronic driver board with housing • Borosilicate glass prism with optional sapphire glass • Secondary cable in accordance with FAA or ICAO requirements This means easy maintenance of the lights because of the reduction of the amount of spare parts. All of our inset lights are also available in CEDD® technology. Please note that the specifications of CEDD® lights are different from this datasheet. Contact our team for more details. Key features • 12" outer diameter • 6.35 mm height above surface • Depth below flange: 50 mm • Light outlet size 49 mm x 10 mm • Dust and water tightness: IP 68 • Overall lifetime* > 20 years • Useful lamp life (LED) up to 50,000 h • Chromaticity coordinates according to ICAO Annex14, Vol. 1 or FAA AC 150/5345-46E • Nominal current: 6.6 A (0 – 100 %) • Power consumption (@6.6 A): White, 44 W per side / Red, 35 W per side / Yellow, 24 W per side
