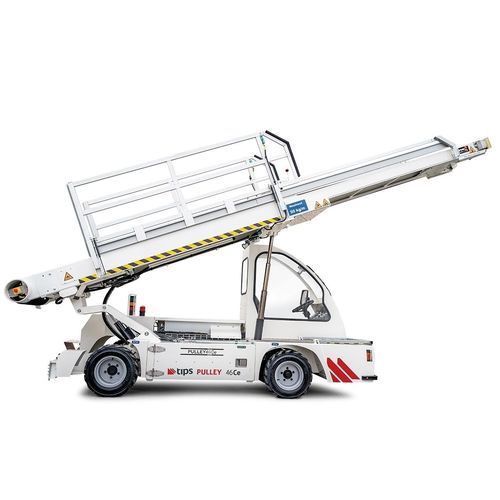

Self-propelled baggage belt loader PULLEY46Ce

for airport

The PULLEY46Ce is an electric self-propelled universal conveyor belt loader for loading and unloading of air freight, bulk cargo and luggage. The battery is easily and quickly replaced when running low and the electrical drive motors feature high torque upon start-up and regenerative breaking for energy savings. Operator’s post in the front left offers good overview during driving and docking operations. The hydraulically extendable telescopic boom combines excellent manoeuvrability and a small turning circle of the vehicle with the high reach of the boom. The 850 mm wide boom has a 600 mm wide transport belt with a maximum single load of 135 kg or a 50 kg/m maximum continuous load and adjustable belt speed. The aluminium railings are manually adjustable on the front of the boom and for accommodation of larger loads the right-side railing is foldable. Modular concept of the vehicle with a wide variety of options enables the product to be configured according to the customer’s requirements. The list of options to choose from includes a roll table on the rear of the boom, sensors for retracted railings and safe docking system. The customer can configure the machine down to the colour according to the RAL chart and decide on its logos size and position. The belt loader is a high-quality product by design as well as manufacturing, has the CE mark and complies to all the relevant EN standards and optionally IATA recommendations.
