X-ray inspection system VECTRO®2

surfaceautomatic

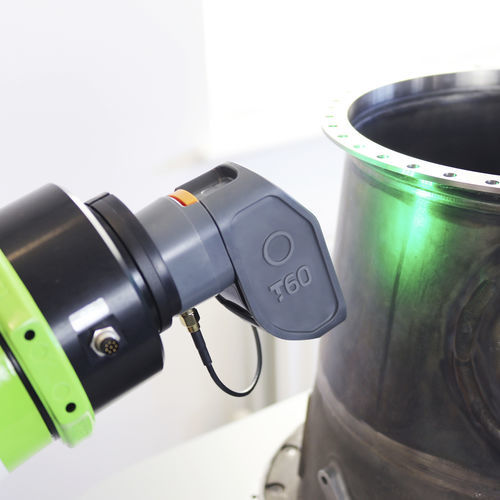

Reduce costs, improve quality and increase productivity In conjunction with a Collaborative or industrial robot, Vectro®2 measures and inspects discrete 2D profiles in a wide range of industrial applications in aerospace, automotive, power generation and consumer goods manufacturing facilities. VECTRO®2 FOR UNIVERSAL ROBOTS VECTRO®2 FOR FANUC Vectro®2 uses Third Dimension’s latest T-Series sensor heads to capture the profile of the feature under test from which the required measurement data is obtained. Using a standard set of virtual tools, Vectro®2 quickly and accurately measures features such as: Gap and flush Radii Chamfers Angles Welds Burrs Designed for automation Compatible with the latest generation of industrial and collaborative robots from the world’s leading OEMs. Automatic manufacturing decisions Vectro®2 automates checking of parts against their dimensional specification with real-time, data-driven, decisions for QC and process control actions. Pre-configured solutions All-in-one packages of hardware and software, pre-configured for deployment on specific collaborative and industrial robots. Modular and versatile Vectro®2 is compatible with the new VChange2 sensor heads, allowing the measurement of a diverse range of feature shapes, sizes and surface types. Accurate, repeatable, and traceable Robotically guided measurements eliminate human error and ensure accurate results every time. T-series sensor heads come with full calibration certificates for proper traceability. Easy and quick to integrate Buy a pre-configured OEM solution pack for rapid deployment or create a custom software application in the .NET environment using the LINK SDK.
