Ground antenna ANT9009H

VHFomnidirectional

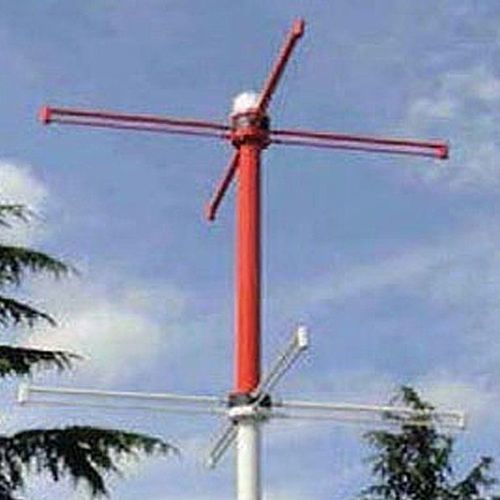

The ANT9009H transmit antenna has been designed for GBAS VHF Data Broadcast. It is composed of two levels of H-POL orthogonal half-wave dipoles and it provides an omnidirectional. Main Features Frequency range : 108-118 MHz Polarization : Horizontal Impedance : 50 Ω VSWR : <1.5:1 Vertical pattern : semi-hemispheric Horizontal pattern : omnidirectional at + 0.5 dB Nominal gain : 3 dBi Input power : 300 W cw Connector : N female Mechanical characteristics Height : 2.83 m Max width : 1.7 m Weight : <20 kg Temperature : -40 to +70 °C Equivalent surface : 0.45 m2 Max wind without ice : 200 km/h (with mast) Mounting : optional mast available Optional obstruction lights : ICAO compliant, 100 000 H
