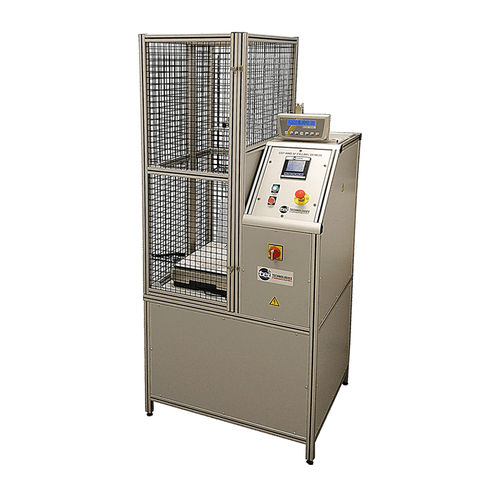

Calibration test bench B002

avionic systemautomaticaeronautical

As option: additional filling lines and integrated cooling system Complete and automatic filling process with PLC-control This station is dedicated to MRO Workshop to carry out automatic (or semi-automatic) filling on Aircraft slide Bottles with Nitrogen gas (N2) and liquid Carbon Dioxide (CO2) in accordance with manufacturer's specifications. It Is qualified for Aircraft slide bottles for Airbus A320, amongst others Product category - Slides and Doors Applications - MRO - Maintenance Repair and Overhaul Features - Complete and automatic filling process with PLC-control As option: additional filling lines and integrated cooling system Technical Specifications - Compressed Air supply: 115 - 230 PSI Liquid Co2 supply (min/max): 220 - 1160 PSI Numeric measurement chains (plug&play use for maintenance et calibration) Nitrogen gas supply (min/max): 220 - 2900PSI Integrated boosters for use with low- pressure Nitrogen and CO2 supply Nitrogen filling pressure range: 0 - 3625PSI Monitoring on bottle temperature throughout filling process Fast, Automatic and Accurate filling process with configurable setpoint ramps and stabilization levels according to the SAE AIR1059F standard. Filling process with mass setpoint (with CO2 and N2) and pressure setpoint (N2 only) Keywords - Aircraft slide bottle CO2 / N2 Filling
