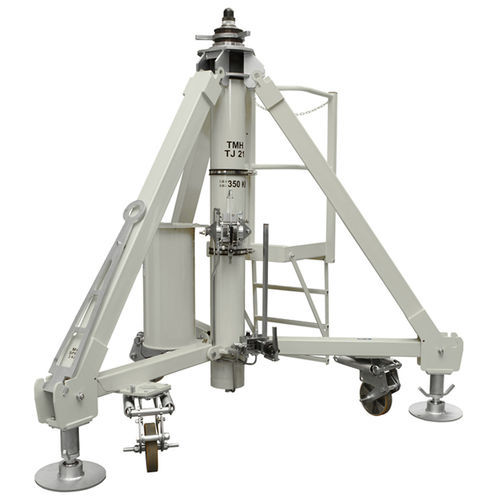

Aircraft jack TMH TJ21 hydraulicpneumatictripod
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft
- Technology
- hydraulic, pneumatic
- Type
- tripod
- Lifting capacity
39.3 t
(43.32 us ton)- Lifting height
Min.: 97 in
Max.: 180 in
Description
Foot print - 52 in
Male shape of hemispherical point - m. 2″1/2
Fluid type - MIL-H-5606 mineral oil
Operating temperature - -13°F to +122°F
Dimensions l × w × h - 92 × 103 × 99 in
Weight - 2643 lb
DESCRIPTION AND FEATURES
Typical aircraft application:
Wings: A320 CEO family (A318, A319, A320, A321) + NEO
Main features:
Foot plates on bearing
Hydraulique lifting by hand pump and/or hydropneumatic pump
Pneumatic lifting control (operator safety device)
Verticality by bubble level
Removable Towbar mountable on any tripod leg
Automatic descent speed control (loaded and unloaded)
Dual flow hand pump
