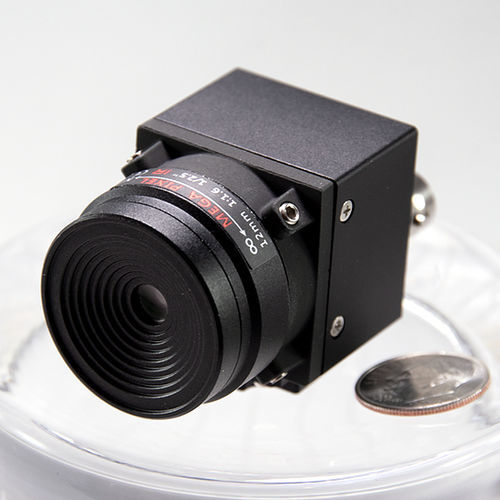

Video surveillance camera TF-3GSDI-CAM

for airporthigh-resolution

Full High Definition 3G-SDI / HD-SDI Resolutions at 1920x1080 Sony 1/3” CMOS Imaging Sensor at 2MP Electronic Shutter RS485 Control Miniature Size of 29mm x 29mm x 29mm Multiple CS Mount Lens Options Auto Day/Night Setting Operating Temperature: -10° to +65° Celsius Weight: 149g Power Input: 12VDC, MAX 150Ma Overview: The TF-3GSDI-CAM is the smallest CMOS sensor, broadcast quality camera with C/CS mount lens options available on the market. The rugged/lightweight aluminum housing allows for multiple mounting options using the 1/4x20 mounting thread on the bottom of the camera. The TF-3GSDI-CAM has a single 1/2.9" Sony Exmor CMOS sensor which is capable of outputting in full HD at 1920x1080p60 with a 2.38 MP resolution. Image Processing Features: The TF-3GSDI-CAM features a wide variety of image processing attributes which come standard with the camera. Some of the many features include different Exposure modes, Backlight adjustment, DNR settings, Lens Shading, Dynamic Zoom, Image Mirror and/or Flip, Privacy and Motion Sensing, Image Sharpness, Day & Night Settings, Image Defogging, Gamma Adjustments, etc. Global Shutter vs Rolling Shutter For those who are not familiar, “rolling shutter” is a technical term referring to the way the image sensor scans the image. If the sensor employs a rolling shutter, this means the image is scanned sequentially, from one side of the sensor (usually the top) to the other, line by line. In contrast to that, “global shutter” is the technical term referring to sensors that scan the entire area of the image simultaneously.
