DVR video recorder TF-TDR4-SD

for airportfor aircraft

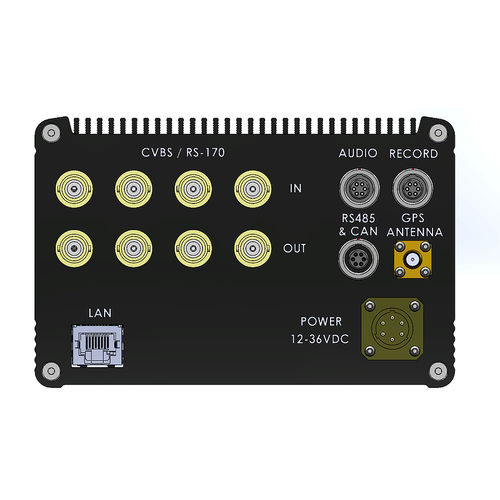

Record 4 independent Analog / CVBS / RS170 channels simultaneuos files to single media drive Built-in 2.5" LCD for live viewing/monitoring Remote External Record Switch (Optional) Up to four independent Stereo Audio Input synchronized to each channel Record to a SD Card with optional exernal USB media storage H.264 video compression and .TS format for data integrity 12-36 VDC input Overview: TechFury’s TF-TDR4-SD sets a new standard in composite video recording as it is specifically designed for rugged & harsh environments and applications. Capable of recording up to four composite (NTSC/PAL/RS170) video inputs simultaneously to a single SD Card with optional USB storage (removable drive or SSD), the TF-TDR4-SD offers the end user a variety of options when recording from multiple composite sources. A single audio input can be paralleled to all four video channels if required. Built-in 2.5" LCD Screen View the live feed from any camera on the built-in 2.5 inch LCD screen mounted on the front panel of the TF-TDR4-SD. Switch between camera views using the four illuminated momentary buttons directly below the LCD display. Switching between the camera views has no effect on the recorded video. A NVG compatible display filter is optionally available upon request. Use this display during operations to verify valid video inputs. External Record Switch Option Recording can be triggered using the front panel record switch or a remotely attached external switch. This function is useful if the recorder is not mounted in reach of the operator. When using the record switch on the front panel, the built-in LED indicator will blink while recording and solid when ready to record.
