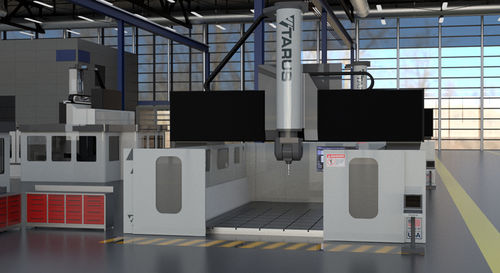

5-axis machining center TARUS TBM verticalfor aeronauticsCNC
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Applications
- for aeronautics
- Other characteristics
- CNC, gantry
- Rotational speed
Max.: 10,000 rpm
(62,832 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description

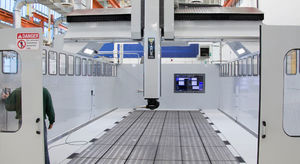

The TARUS TBM is a Moving Gantry Machining Center. Intended uses are Finish Milling of Steel / Invar Layup Tools, Milling and Drilling of Aluminum and Epoxy Aerospace Tooling and Models.X, Y and Z axes are driven by TARUS’ integrated Torque Motor Ballnuts. Custom / longer X axes will require Rack and Pinion or Linear Motor Drive.The base model, TBM-C90 is equipped with the TARUS 2 Axis Clamping Angle Head. Range is 0-90º degrees in the A axis and 360º in the C Axis. Spindle angle is clamped with springs and unclamped hydraulically for rotation via the servo motors. A seamless ring induction scale is fit directly to the rotating axes. The Clamping Head’s 50 Taper Spindle is a directly driven by a water cooled Synchronous motor, 0-10,000 rpm, 29 kW, 176 Nm peak.
