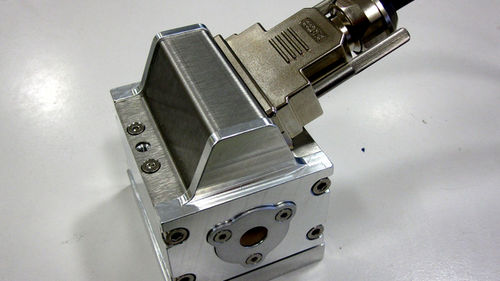

Coating thickness gauge EddyCus® TF inline WT

glassnon-contactfor aeronautics

The EddyCus® inline WT series are designed for the non-contact continuous inline testing of any conductive wire sharped materials. This solution enables process control, increase of yield, and incoming and outgoing goods inspection. Applications / specimen Conductive coatings on non-conductive materials (conductive coated glass fiber, coated threads) Conductive wires (metal filaments and wires, metal fibers) Conductive band (steal bands, susceptors) Electrical cords and wires Other conductive materials (carbon fiber materials such as roving or rods) Physical values Resistance per length [Ohm/m] Sheet resistance [Ohm/sq], Resistivity [Ohm cm] Thickness / Volume [nm, µm] Defect detection Cracks Coating defects and variation Splice detection Other defects that alter the electric characteristics or current flow (breakages, twist, splice, fuzz, fold, entanglement) Geometry Flat and round material Diameter / width of 0.01 to 10 mm (other on request) Sampling rate / measurement speed 0.1 Hz to 50 kHz suitable for up to 50 m / s movement. Benefits Quality assurance Process control Yield improvement Customer trust by documented spool / roll report Features Magnetization Alarming
