Electric actuator AQS-20

rotaryfor aircraftspur gear

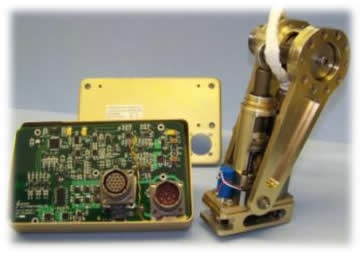

Superior Motion Control developed a custom rotary actuator for fin control on AQS-20. The design incorporates a DC brushless motor, a spur gear train and ballscrew to drive a crank arm. The custom configuration of this actuator allows for increased torque in a small package. Specifications Supply Voltage: 28 VDC Max Current: 6 Amps Bandwidth: 10 Hertz Com: Analog Travel: +/- 25 Degrees Accuracy: +/- 0.35 Degrees Force: 600 in-lbs Size: 7.5 in x 2.5 in x 3.3 in
