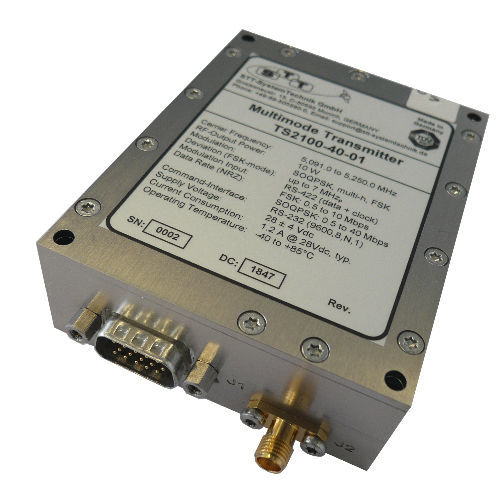

C-band video transmitter TS2100

for aircraft

The C-Band Multimode Transmitters Series TS2100 are designed for Bandwidth efficient transmission Of digital data. Operational parameters like carrier frequency, output power, etc. are programmable via serial interface (V24 on RS-232/RS-485). The TS2100 transmitters are of very small size, low mass and high efficiency and are designed to meet IRIG 106-15 standards. RF Output Frequency Range - 5091 to 5250 MHz Frequency Selection - within 100MHz band programmable in 100kHz steps Frequency Stability - ≤ ± 0,002% Output Power - 1 to 10 Watts, min. Output Impedance - 50 Ohm Harmonics, Spuria - ≤ -60 dBc Open/Short Protection - yes, by internal isolator Turn-on start-up time - 1 sec. max. Modulation Type - PCM/FM, SOQPSK, multi-h Input - Data + Clock TTL or RS-422 Signal Range - 1 to 40 Mbps (NRZ) DC Power Power Supply - 24 … 32 VDC Rev. Voltage Protection - yes, by internal serial diode Overvoltage Protection - for spikes up to 50 V/10 ms Power Consumption - 1.4A , typ. @ 28VDC (10 Watts)
