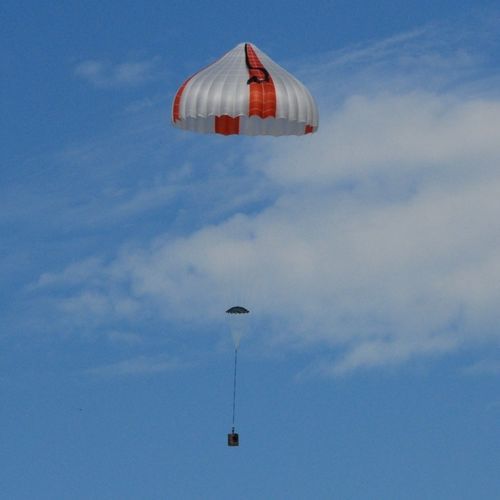

ULM parachute Magnum 501
rescue

ULM parachute - Magnum 501 - Stratos 07 s.r.o. - rescue
ULM parachute - Magnum 501 - Stratos 07 s.r.o. - rescue
ULM parachute - Magnum 501 - Stratos 07 s.r.o. - rescue - image - 2
ULM parachute - Magnum 501 - Stratos 07 s.r.o. - rescue - image - 3
ULM parachute - Magnum 501 - Stratos 07 s.r.o. - rescue - image - 4
ULM parachute - Magnum 501 - Stratos 07 s.r.o. - rescue - image - 5
ULM parachute - Magnum 501 - Stratos 07 s.r.o. - rescue - image - 6
Add to favorites
Compare this product


Characteristics

Applications
for ULM, rescue
Wing surface

86 m²
(925.7 ft²)

Maximum load

475 kg
(1,047 lb)

Weight

9.2 kg
(20.28 lb)

Description

Maximum speed - km/h - 300 Dimensions (lxwxh) - mm - 240x190x350 280x160x385 410x170x240 Opening time at maximum speed - s - 3 Minimum safe deployment altitude (AGL) during horizontal flight - m / km/h - 180 / 100 Maximum overload (with maximum load) - kN - 25,6 Descent (with maximum load) - m/s - 7,3 Sleider - - yes Container type - - cloth Canopy - - Repack interval - year - 6 Ballistic device - - Rocket engine type - - Magnum 450 Total impulse at 20°C - kNS - 0,303 Activation - - Mechanical Burn time at 20°C in second - s - 0,57 ± 0,03 Certified by - - DULV
