Working lifting platform DPT-512

scissorfor aircraft

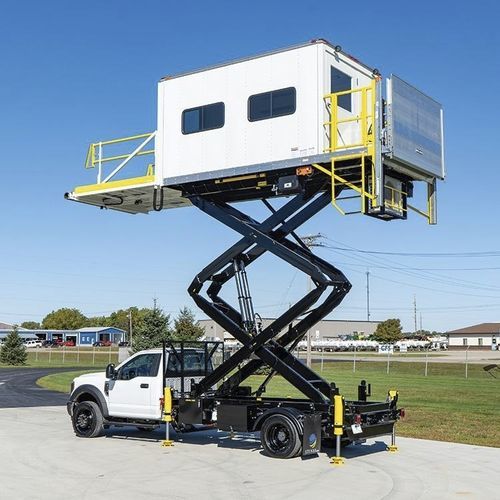

Dependable and secure, the Stinar Disabled Passenger Transporter, model DPT-512, is the leading choice for transporting injured or disabled personnel to and from the aircraft. Mounted on an OEM chassis, the van body can service heights of 90 to 228 in (2286 to 5791 mm) using the Stinar-designed hydraulic scissors lift mechanism. A hydraulic rear lift gate transfers passengers between ground level and the van body. Optimizing support, hydraulically operated stabilizers are provided. ADDITIONAL FEATURES 12V powerpack for emergency operations A/C Heating unit Intercom system Foldable attendant bench seating Wheelchair tie downs Specifications (Some specifications vary per OEM Chassis) Inches OVERALL LENGTH 330 in OVERALL WIDTH 102 in VAN BODY LENGTH, Inside 91 in VAN BODY WIDTH, Inside 77 in BODY LIFT MECHANISM Reaching new heights. The Stinar-designed double scissors lift mechanism enables the van body to be raised vertically while the van body floor remains parallel to the ground. The durable double scissors design is constructed of reinforced steel tubing secured to the subframes. The lift mechanism is powered by two hydraulic lift cylinders equipped with electrically released lock valves for added safety. FRONT PLATFORM Stinar’s front platform extends 24 in (610 mm) from the van body to the aircraft bridging the gap between the van body floor and the aircraft door threshold. Extending out on steel rollers, the platform rests on a screen guard as the body is raised and lowered. The platform features telescoping side rails, rubber bumper pads and diamond plate flooring.
