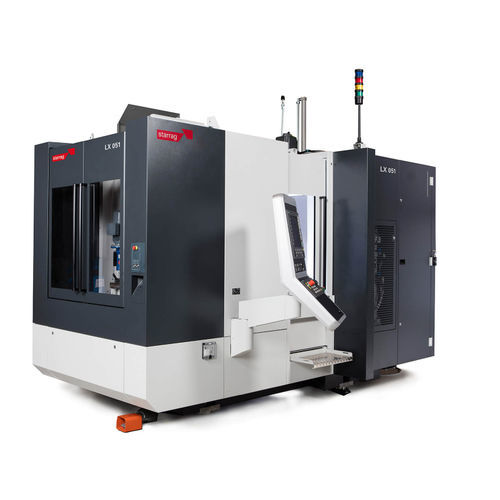

5-axis machining center LX 051

horizontalfor aeronauticsfor the aerospace industry

The highest levels of process reliability and efficiency, thanks to individual application-orientated technology services A comprehensive integrated solution from one source – from the machining system via the specially developed CAM system through to the integration of process monitoring systems The optimisation of unit costs for ready-to-install blades thanks to an integral machining concept for pre and postprocessing in a clamping position The LX series was specifically designed for the high-precision, efficient five-axis machining of turbine blades. This ultra-modern machining platform is the result of decades of experience in the development of machine tools, CAM systems and special tools combined with our in-house expertise in the prototype and series production of turbine blades. Control and system capability Contour fidelity during high-speed machining through look-ahead feature and dynamic preselection Drive parameter adjustment depending on the machining Control cabinet with air conditioning unit Control behavior and NC path planning are developed and optimized in great detail to achieve the perfect combination of geometrical accuracy, surface quality and of course productivity. Depending on the required application, the machine can be optimally configured using five settings: roughing, pre-finishing, fast finishing, finishing and super finishing. Usability Large door and viewing window Easy loading with crane Transportation as a complete unit, with all auxiliary units fully integrated within the machine Highly dynamic rotary axes The rotary axes are directly driven by state-of-the-art torque motors Guarantees the most precise positioning
