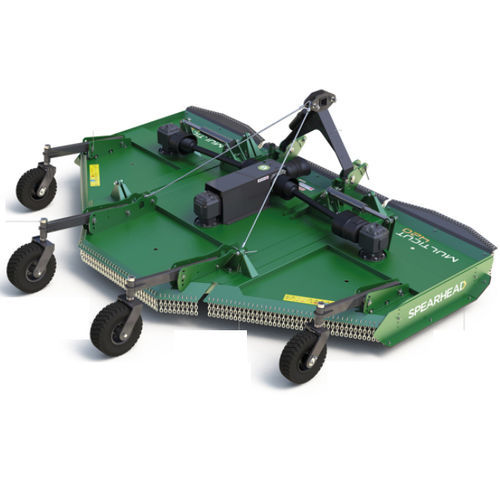

Towed mower MULTICUT 420

tractor-mountedfor airport

The Multicut 420 is a 3-point linkage mounted machine ideal for use with tractors of 80hp and above. Sitting perfectly between the fixed and trailed mowing units available on today’s market, the Multicut 420 100 gives added versatility alongside a host of innovative features. The machine features inward folding wings to keep the transport width within 2.8m, meaning narrow lanes are easily negotiated and no on road towing kit is required. A 100hp heavy-duty driveline operating at 1000rpm fitted with three rotors with three blades operating at over 80 metres per second as standard give effortless cutting power in intense working conditions. A delta style construction allows for a smooth throughout of material in and out of the machine combined with a floating linkage to leave a perfect working image even in very rough terrain. Rapid in field cutting height is changed by adjusting each of the four wheel arms on the machine which each feature a heavy duty industrial wheel and tyre. Machine weight:1875kg (4134lbs) Hitch:Category 2 with floating clevis top link Cutting width:4.45m (14′ 7″) Overall width:4.71m (15′ 6″) Overall length:3.62m (11′ 11″) Deck height**:0.73m (2′ 5″) Cutting height:25mm – 400mm (1″ – 1′ 4″) Cutting capacity:100mm (4″) Recommended tractor HP:80hp (60kW) Power take-off speed:1000rpm Gearbox:Cast iron housing Input shaft:1-3/8″ Z6 input shaft Gearbox lubricant:Lithium EP000 semi fluid grease Gearbox oil capacity [splitter gearbox]:4.3 litres (7.6 pints) Gearbox oil capacity [rotor gearboxes (x2:TBC Deck construction:All welded construction Deck material thickness:4mm (3/16″) Side skirt material thickness:6mm (1/4″)
