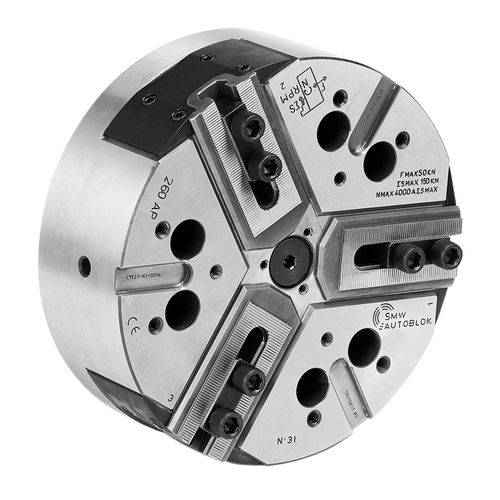

Turning chuck AP series

for aeronautics

INCH SERRATION METRIC SERRATION High precision fully sealed power chucks Closed center 3 jaws proofline® chucks = fully sealed–low maintenance Application/customer benefi ts • For mid to large batch production • Fully sealed, ideal for dry machining of castings and forgings or if high pressure coolant is used Master jaws with INCH SERRATION (1/16” x 90°, 3/32“ x 90°) Master jaws with METRIC SERRATION (1.5 mm x 60°) (suitable for japanese chuck top jaws) Technical features • Constant gripping force with permanent grease lubrication • Central bore for coolant and/or air • Chuck body and internal parts case hardened • proofl ine® chucks = fully sealed – low maintenance Standard equipment 3 jaw chuck 1 set T-nuts and bolts 1 set soft top jaws Mounting bolts Ordering example 3 jaw chuck AP-D 215 / A6 or 3 jaw chuck AP-M 260 / Z220
