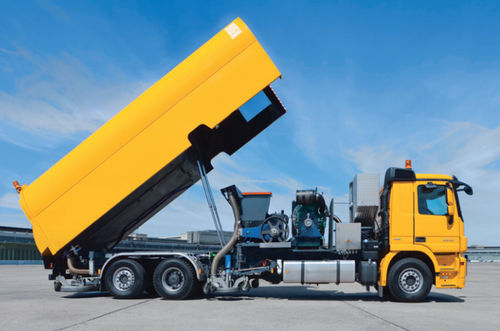

Airport runway cleaning machine ARC 2400®

truck-mountedfor surface cleaningfor rubber removal

RETEXTURING OF ROAD SURFACES MARKING REMOVAL RUBBER REMOVAL ON RUNWAYS The ARC 2400® is a compact, easy to maneuver vehicle (6×2 chassis) with an extremely high performance. In addition to the rear jetting device (3 x 800 mm), side jetting devices with a max. working width of 360 mm can be mounted on one or both sides of the truck. Each cleaning device can be activated or deactivated individually. The ARC 2400® can be used on runways for rubber removal and on roads for marking removal and/or roughening. MAX. WORKING WIDTH 2,400 mm Note: Lower working width is available by installation of less nozzles in the 3 of 800 mm cleaning heads. MAX. WATER PRESSURE (operating / technical limit) 2,500 / 3,000 bar TANK VOLUME (Standard) 17 m³ MAX. PUMP PERFORMANCE 72 l/min Note: Technical performance limit of the most powerful pump. Other pumps available as per customer request. SPEED DURING OPERATION 3 – 80 m/min (0.18 – 4.80 km/h) steplessly adjustable ROTATION OF NOZZLES 0 – 2,500 rpm steplessly adjustable
