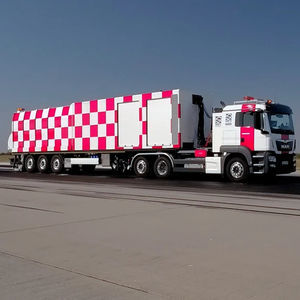

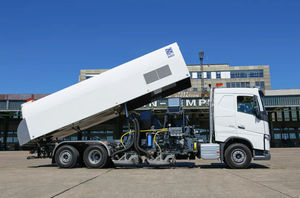

Airport runway cleaning machine ARC 1000®

truck-mountedfor surface cleaningfor rubber removal

The more movements (take-offs and landings) take place on a runway, the more rubber deposits (or carbon black deposits) remain on the surface. These deposits lead to poor friction in the rain and thus increase the risk of aquaplaning extremely. This is to be prevented by an effective cleaning/rubber removal. Various ARC models, with different processing widths and thus different performances per hour of operation, meet the demand of the rapidly growing market. The ARC 1000® is a system in which ALL units are driven by the vehicle engine (at least 480 PS). MAX. WORKING WIDTH 1,000 mm Note: Lower working width is available by installation of less nozzles in the one 1,000 mm cleaning head. MAX. HIGH PRESSURE 2,500 / 3,000 bar TANK VOLUME 13 m³ (enlargeable on customer request) MAX. PUMP PERFORMANCE 29 l/min Note: Technical performance limit of the most powerful pump. Other pumps available as per customer request. SPEED DURING OPERATION 3 – 80 m/min (0.18 – 4.80 km/h) steplessly adjustable ROTATION OF NOZZLES 0 – 2,500 rpm steplessly adjustable LINEAR PAINT REMOVAL PERFORMANCE 2,800 – 4,400* linear meters / hour * Applicable for 1 layer of paint (standard thickness of 0.8 mm).
