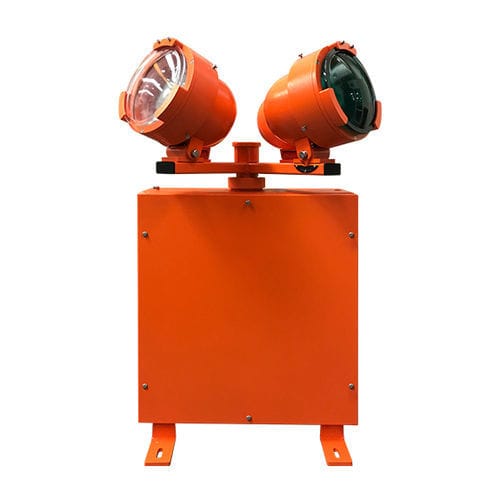

Airport beacon STM.801.APB series

halogen

Related Standards and Compliances FAA : L-801A AC150/5345-12 (Current Edition) ICAO : Annex 14 Vol. 1 Par. 5.3.3. Application L-801A Rotating Beacons are designed primarily for night operation as identification and location markers for airports. Features Can be clearly seen at a distance of 40 miles. Electronically - controlled automatic lamp change, in case of malfunction. Lamp Lifetime > 4000 Hours. 10-18 rpm adjustable or 12 rpm fixed. Modular structure for easy maintenance. Resistant to the most severe weather conditions. Prefocused narrow angled 1000W PAR64 bulb. OLED display for status information. (opt.) Operating Time Recorder. Aviation Orange coated, stainless steel body. Optional Arctic Kit : For cold weather environments. Optional Photo Cell : Turns beacon a sunset, off at sunrise. Technical Specifications Protection Degree : IP67 Relative Humidity : up to %100 Working Temperature : Class 1: -30C to +55C (-22F to +131F) Class 2: -55C to +55C (-67F to +131F) Power Source : 110/230V - 50/60Hz 48V Remote control relay. Feedback relays : Lamp disfunctioning, system ON, motor failure. Dimensions and Weight Dimensions : 780mm X 600mm X 500mm Net Weight : 38Kg Packaking : In cardboard Box 800mm x 620mm x 520mm
