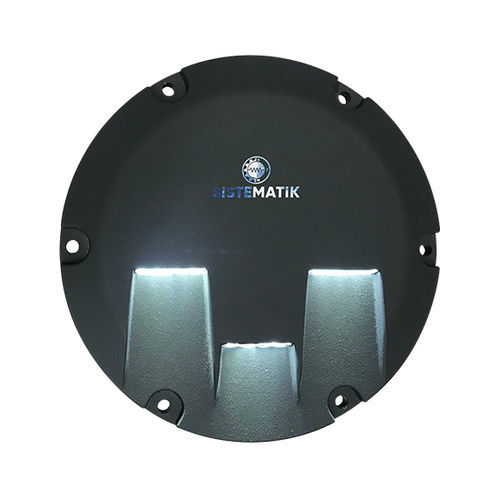

Approach light STM.850 series

for airport runwayLEDred

Related Standards and Compliences ICAO : Annex 14 Vol. 1 Fig. A2-1 and A2-2 FAA : AC 150/5345-46 IEC : TSE / EN 61827 NATO : STANAG 3316 Application Approach Centreline & Crossbars & Approach Side Row for ICAO,FAA and Military Runways. Features LED life up to 60000 hours at full intensity. Color emitted (White / Red) directly by LEDs. Fully compatible with existing AFL infrastructure. A surge protection device is provided in the electronics as required by the FAA “Engineering Briefing No.67” 6,35mm protrusion above to ground. Not require optical adjustment after LED module or Lens replacement. Fully Dimmable, New Generation LED Driver Electronics. Pressure Valve for water tightness test after production or overhaul Unidirectional Light - 12” type Application. Easy handling and maintenance by modular design. Arctic Kit Optional Monitoring Optional Technical Specifications Protection Degree : IP67 Relative Humidity : up to %100 Working Temperature: -55 C to +55 C (-67 F to +131 F) Power Consumption: 65VA White (Measured @6,6A) 42VA Red (Measured @6,6A) Power Factor : 0,97 (Measured @6,6A)
