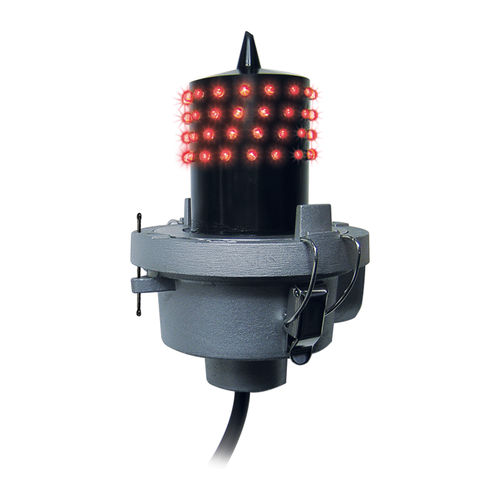

Obstruction light NAVILITE FAA L-810

for airportLEDred

Low Intensity Aircraft Warning Light engineered according to ICAO Low Intensity Type B and FAA L-810 regulations. NAVILITE FAA is provided with a red steady light covering 360° horizontal beam. 64 LEDs, wired in active redundancy (16 independent circuits of 4 LEDs), guarantee marking continuity even when one or more circuits fail. This solution makes the use of warning lights with back-up circuit superfluous. The LED technology guarantees a long product life estimated in over 10 years, as well as low consumption (1/10 when compared to incandescent bulbs). The base is provided with surge protection and alarm dry contact. Voltages 110/240V AC +/-10% 50/60Hz Mechanical features Dielectric polyurethane resin body Aluminum NPT base Optical features Red steady light Luminous intensity >32Cd Horizontal beam spread 360° Vertical beam spread >10° Fixing 2x 3/4″ NPT threaded holes Technical features AC/DC converter with current regulation Surge protection 10kA in 8/20μs Alarm dry contact for remote signalization SYSTEM DESIGN SUPPORT Our Team of experts can assist designers and installers with professional support in terms of norms and system configuration.
