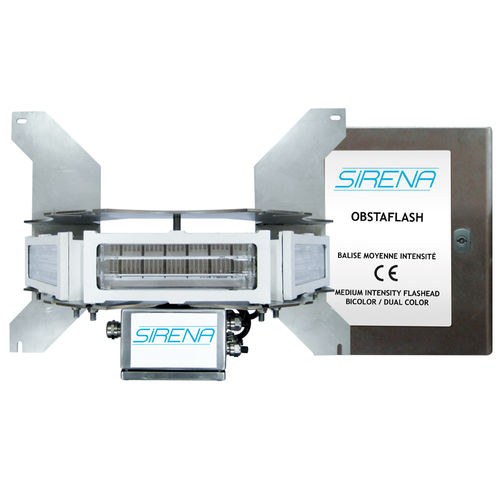

Obstruction light OBSTAFLASH LED

for airportfor aircraftLED

Medium Intensity Aircraft Warning Light engineered according to ICAO Medium Intensity Type A, B, C, B+A, C+A regulation. OBSTAFLASH LED 180° is provided with 3 independent LED projectors 48V DC, powered by a stainless steel POWER CABINET. Wiring connector on the flash head included. OBSTAFLASH LED 180° is available in the following LED versions: with red flashing light (50528), red steady light (50529), white flashing light (50530), dual color flashing light (50531), white flashing light and red steady (50532). OBSTAFLASH LED 180° is the ideal solution for day and/or night marking of all kind of obstacle higher than 45 meters. For obstacles below 150 meters the use of white or dual color during daytime obviates the need to paint the obstacle with red and white stripes. The product shall be used with an external photocell (see accessories section), connected to the POWER CABINET and oriented to the North (in the North Hemisphere). KIT OBSTAFLASH LED 4×180° TYPE BC+A including 4 warning lights supplied with wiring cables (length to be agreed when ordering), 48V DC or 230V AC, powered by a stainless steel POWER CABINET. OBSTAFLASH LED 180° is the ideal solution for buildings. Voltages 48V DC, 230V AC (50/60Hz) +/-10% (through POWER CABINET) For 48V DC versions, optional power supply through BATTERY CABINET (available on request) Mechanical features Aluminum and glass projector body Stainless steel vertical support Optical features Horizontal beam spread 360° (at least 2 warning lights visible from each side of the obstacle) Vertical beam spread >3° Fixing Through stainless steel vertical support with 4 fixing points Technical features POWER CABINET
