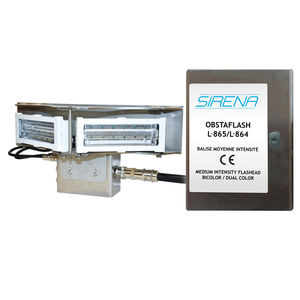

Obstruction light OBSTAFLASH LED

for airportfor aircraftLED

Medium Intensity Aircraft Warning Light engineered according to ICAO Medium Intensity Type A, B, C, B+A, C+A and FAA L-864, L-865 regulations. OBSTAFLASH LED is provided with 6 independent LED projectors 48V DC, powered by a stainless steel POWER CABINET. Wiring connector on the flash head included. The device is designed with independent LED circuits that in case of failure of one of these allow 360° signalization and Cd requirements according to the norm. Remote alarm indication in the command box. OBSTAFLASH LED is available in the following LED versions: with red flashing light (50510- 50514), red steady light (50509-50515), white flashing light (50508-50513), dual color flashing light (50511-50516), white flashing light and red steady (50512-50517). OBSTAFLASH LED is the ideal solution for day and/or night marking of all kind of obstacle higher than 45 meters. For obstacles below 150 meters the use of white or dual color L-865/L-864 during daytime obviates the need to paint the obstacle with red and white stripes. OBSTAFLASH LED shall be used with an external photocell (see accessories section), connected to the POWER CABINET and oriented to the North (in the North Hemisphere). Voltages 48V DC, 110/240V AC 50/60Hz +/-10% through POWER CABINET For 48V DC versions, optional power supply through BATTERY CABINET (50549-50550), 12 hours backup or through stainless steel IP65 7Ah 1300W BATTERY CABINET (50551), for further information see accessories section. Mechanical features Aluminum and glass projector body Aluminum vertical support POWER CABINET: AISI 316L stainless steel Optical features Horizontal beam spread 360° Vertical beam spread >3°
