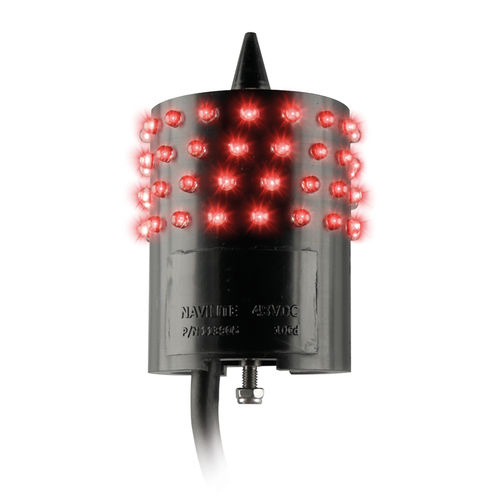

Omnidirectional approach light NAVILITE TYPE B

for airportfor aircraftLED

Low Intensity Aircraft Warning Light engineered according to ICAO Low Intensity Type B regulation. NAVILITE is provided with a red steady light covering 360° horizontal beam. 64 LEDs, wired in active edundancy (16 independent circuits of 4 LEDs), guarantee marking continuity even when one or more circuits fail. This solution makes the use of warning lights with back-up circuit superfluous. The LED technology guarantees a long product life estimated in over 10 years, as well as low consumption (1/10 when compared to incandescent bulbs). Supplied with cable 35 cm. The COMMAND BOX (50506) allows wiring and monitoring of 1 or 2 NAVILITE 48V DC working at night only or continuously. It allows simultaneously or in redundancy operation (a main and a back-up light, the latter automatically switches when main fails) with remote signalization in case of failure of the light or of the 48V DC supply. Integrated photocell. Voltages 24V DC, 48V DC +/-10% Optional power supply through BATTERY CABINET (only for 48V DC) with 12 hours backup. Mechanical features Dielectric polyurethane resin body Optical features Red steady light Luminous intensity >32Cd Horizontal beam spread 360° Vertical beam spread >10° Fixing Through M5 screw. Installation accessory: • stainless steel FIXING BRACKET (50505) SYSTEM DESIGN SUPPORT Our Team of experts can assist designers and installers with professional support in terms of norms and system configuration.
