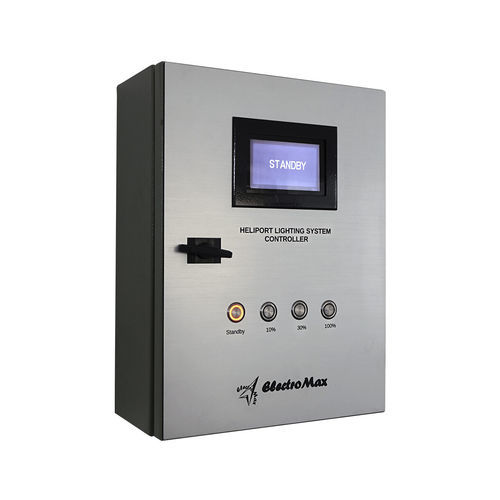

Airport control cabinet AL-077-AX

The Heliport Controller is designed as a compact and simple device used to control and provide the power requirements of an entire heliport lighting system. The system is fully protected from input transients, output, overload, over-voltage, and over-temperature conditions. Designed and manufactured in Romania. Light Intensity control can be set at the following brightness levels: 10%, 30%, and 100%. When the lighting system includes a Heliport Beacon, the above intensities will automatically be changed for the beacon. So when the system will run at 10% power, the beacon will run at 3%, at 30% power, the beacon will run at 10% and 100% power is for both the beacon and the other lights (ref. ICAO 5.3.2.5) Description Input power range: 110-240V AC Output voltage: 48V DC Output power: 600 or 1000 W (120W reserved for heliport beacon) Compatible with: TLOF, FATO, AIMING, APPROACH, and BEACON Light Intensity Control: the following brightness levels can be set: 10% 30% 100% LCD Display Technical Specifications The Hely controller is designed as a compact and simple device used to control and provide the power requirements of an entire heliport lighting system. The casing is made of powder-coated metal LCD Display 3 step brightness control Compatible with TLOF, FATO, AIMING, APPROACH and BEACON
