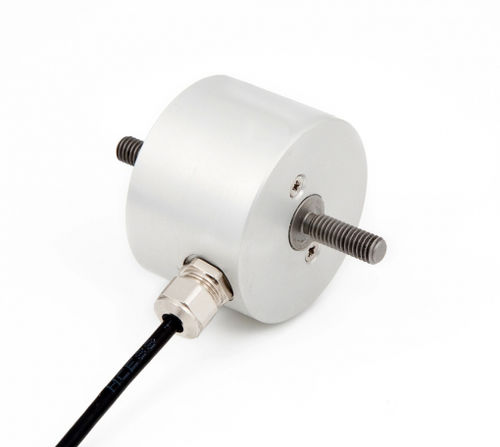

Compression load cell SS5000M series

tensionfor the aerospace industryminiature

The SS5000 series are strain gauge based tension & compression, miniature universal load cells with integral amplification providing a high level output signal, operating from an unregulated supply voltage. These universal load cells are fully compensated for the effects of temperature on the zero output and sensitivity and employ precision transducer quality bonded strain gauges inter-connected to minimise the effects of offset forces and bending moments as the primary transduction elements. The SS5000 series are machined from stainless steel and have a high resistance to overload, shock and corrosion. Load Range 1000N, 2000N, 250N, 500N Use Both, Compression, Tension The SS5000 series are manufactured from stainless steel and have unusually high resistance to overload, shock and corrosion. The transducer is fully compensated for the effects of temperature on the zero output and sensitivity and employs precision transducer quality bonded strain gauges inter-connected to minimise the effects of offset forces and bending moments as the primary transduction elements. The universal load cell is fitted with an integral multi-conductor cable properly bonded to ensure full EMC compatibility. Sherborne Sensors SS5000, are a family of universal miniature strain gauge load cells, designed to measure both tension and compression loads. SS5000 is specially designed with integral amplification, offering users a high accuracy measurement output of +10 Vdc over their full range. Most load cells on the market of this type offer only mV output.
