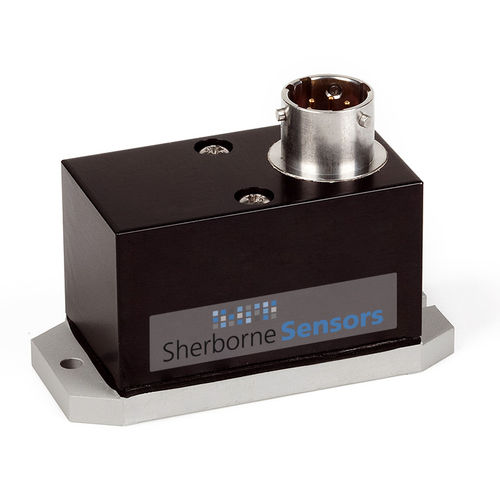

1-axis inclinometer T640 seriesVdcmAfor the aerospace industry
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis
- Output signal
- Vdc, mA
- Domain
- for the aerospace industry
- Inclination
30 °, 60 °, 90 °
- Temperature range
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
The T640 Series is a range of gravity referenced inclinometers used in a variety of industrial and military applications where precision angular measurements are required in rugged applications.
Models are available in a variety of ranges from +/-30° to +/-90° with low impedance filtered and unfiltered output voltage signals. Electrical terminations are via a 6-way connector on the T643 or solder pins on the T645 variant.
Output
Voltage
Degree Range
30 degree, 60 degree, 90 degree
Termination
Connector
Ranges ±30º, ±60º and ±90º
Essentially zero temperature coefficent of damping ratio
Filtered and unfiltered outputs simultaneously available
Integral temperature compensation
DC input – DC output
Signal ground isolated from power ground
Data acquisition systems
Roadbed analysis
Platform levelling
Structural monitoring
Pipeline levelling
Ship ballast transfer systems
