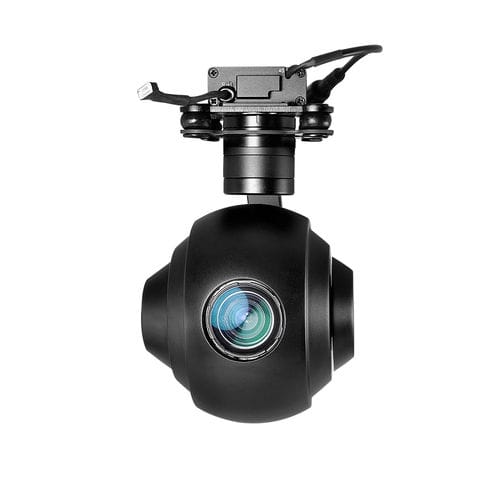

3-axis gimbal Q20T

for droneshigh-precisionlightweight

Q20T features 20x optical zoom 4K EO and auto tracking function. It is a 3-axis gimbal camera, Alluminum alloy hosing is ideal for light weight meanwhile keeping perfectly anti-interference and cooling. It outputs and records FHD 1080p video with OSD. Connected to GPS module it has geo tagging funcion. Combining with high-precise stabilisation system and automatic thermal compensation algorithm, the gimbal can fulfill high level stablization requirements without thermal drifting. Powered by SONY 1/2.5" "Exmor R" CMOS module, with 0.01 lux@F1.6 minillumination, 8.51 mega effective pixel and 1080p FHD image quality, combined with 20x advanced optical zoom technology, the observation range is up to 2000 meters, which can meet the application requirements of various domains. Built-in Auto-tracking Function Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect. Multi Output Methods Optional Q20T support both HDMI output, Ethernet/IP output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output will support 360degree enless pan. Defualt PWM and Serial port TTL control, SBUS is optional. With Viewpro software Viewlink you can fulfill IP output, TTL control.
