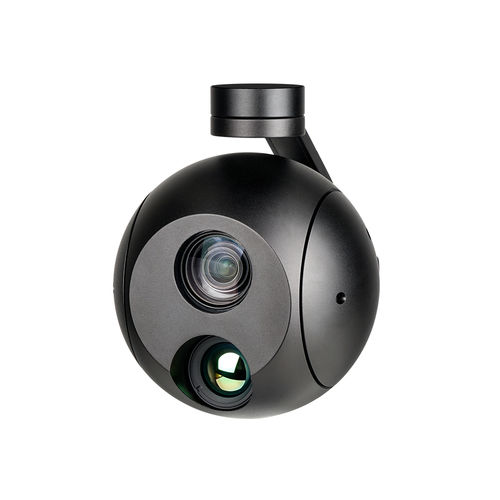

Thermal camera A10T Pro

trackinginspectionfor drones

A10T Pro is a dual-sensor gimbal camera featuring 539g light net weight, small volume and compact structure, which integrates a 10x optical zoom and a 19mm lens 640*512 thermal camera. It with 3-axis high-precision gimbal which has advantages of better metal texture, anti-interference and better heat dissipation. It is integrated with AI object identification and tracking module, which can realize car and human automatic recognition and tracking. It widely used in inspection, surveillance, search and rescue and other industrial applications. Al Object Identification and Tracking The highlight of A10T PRO is integrated with Al object identification and tracking module, which can realize car and human automatic récognition and tracking by choosing the corresponding tracking mode. - Al detect more than 10 objects at the same time. Tracking more stable, zoom and tracking can be operated automatically and simultaneously. Al récognition can be customized based on the target characteristics. Hardware Parameter Working voltage - 16V Input voltage - 4S ~ 6S (14.8V~25.2V) Output voltage - 5V (connect with PWM) Dynamic current - 700~1250mA @ 16V Power consumption - Average 11.2W, Max 20W Working environment temp. - -20℃ ~ +50℃ Output - micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps H264/H265) Local-storage - SD card (Up to 256G,class 10, FAT32) Photo storage format - JPG(1920*1080) Video storage format - MP4 (1080P 30fps) Control method - PWM / TTL / S.BUS / TCP / UDP Gimbal Spec Angle scope of structure design - Pitch/Tilt: -50°～135°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
