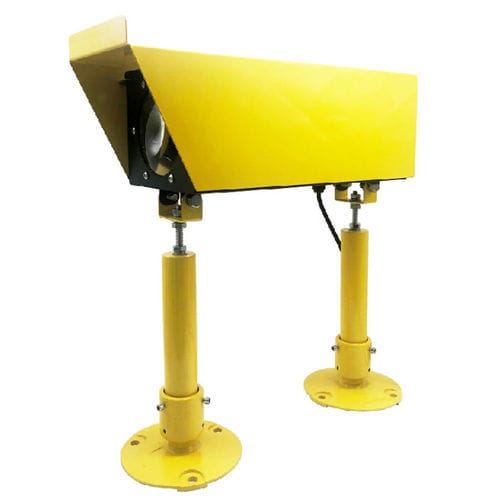

Approach light AH-HP-CHAPI

landingnavigationfor helicopter

The LED CHAPI Heliport Approach Path Indicators (CHAPI) uses LED technology to provide the pilot with safe and accurate glide slope on final approach to the helipad. A set of two LED CHAPI Light Housing Assemblies (LHAs) are seen by the pilot in combinations of white, green and red to indicate a path that is too high, too low or within the 6° ±0°15' glide slope. Solar power system is optional for CHAPI. LED CHAPI Heliport Approach Path Indicators Compliance ICAO Annex 14 Volume I 6th Edition dated 2013 clauses, 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1 FAA AC 150/5390-2B Heliport Design Guide LED CHAPI Heliport Approach Path Indicators Features Electrical LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light Power supply available in AC(110-240VAC), DC48V Physical Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection. UV protection Powder coated bright yellow color base make better visibility Housing material is stainless steel which has strong corrosion resistance, Shock and Vibrations protection Fragile coupling reduce the secondary damage to helicopters effectively Optional Clinometer VHF pilot to ground remote control Solar power system Wireless Remote Control LED CHAPI Heliport Approach Path Indicators Application Permanent, Temporary, Emergency Helipad/Airport/Helideck OFFSHORE/ ONSHORE USAGE
