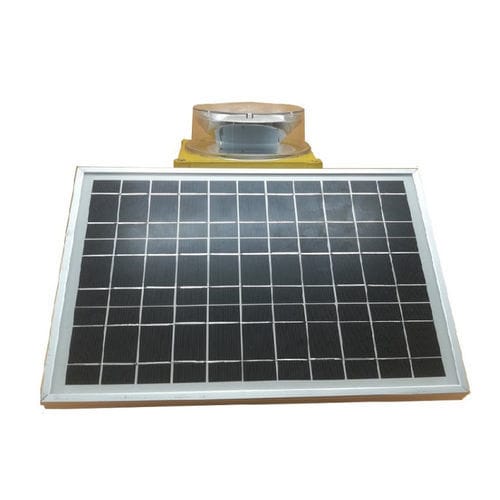

This Medium-intensity Type A Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is between 105 to 150 meters.
Ultra high intensity LED is used as light source which make performance better, and solar panel vertical degree is adjustable(10°15°20°25°30°35°40°) for get as much as sunlight in different area.
Compliance
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type A Obstruction Light
FAA L-865
Features
Electrical
Ultra high intensity CREE LED light source saving power consumption and maintenance
Physical
UV & vibrations protected polycarbonate lens for converging light
Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
Side open stainless steel battery box
System design
Solar panel as photocell for day & night working mode (dusk to dawn mode)
ON/OFF button interface
Optional
GPS Synchronization
Infrared LED for pilot using NVG
Remote control ON/OFF
Application
AH-MS-A1 solar medium-intensity aircraft warning light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity aircraft warning lights & medium intensity type B aircraft warning light installed on the lower place.
