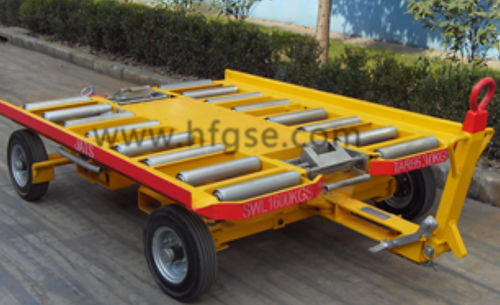

Container trailer

LD2LD3LD1

1. Adopt all the operational comments from A.S. Airports, the design meets over 85% of the requirements; 2. There 16 galvanized rollers, with thick gauge material, over the working platform for the loading and unloading of containers; 3. Fool-proof self-locking system in both ends to prevent any disengagement of containers; 4. A fool-proof design of the rear hitch so as to prevent any detachment of the towed behind; 5. Brake applies when the tow-bar is in vertical and below horizon. 6. The turntable type steering makes the turning radius less then 3.5 meters; 7. Durable solid tire; 8. The working table turns 360 degrees with stop at every 90 degrees so as the container can be loaded or unloaded on every 90 degrees turning; 9. Loading mode: both side load and end load; Overall Dimension (mm) 3650×1630×560 Weight (kg) 720 Platform Dimension (mm) 1920×1630 Frame Standard channel steel (8#) Height of working platform (mm) 508-515 Roller Seamless steel tube (￠76×4mm) Tire size 400-8 Towbar Standard channel steel (12#)
