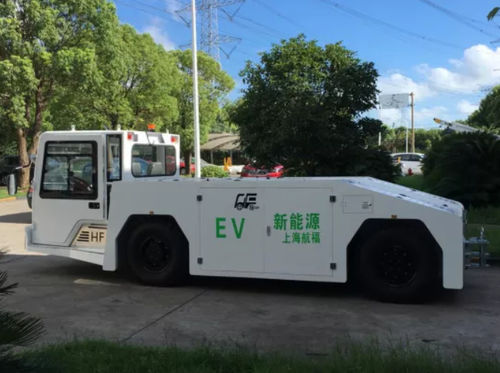

Towing tractor HFDQY6160

for aircraftelectricwith towbar

The HFDQY6160 series electric aircraft towing tractor,using European latest technology.It is designed to push and pull all known narrow body and to certain extend medium body aircraft.The maximum draw bar pull is up to 160KN.The aircraft below 150T/300T.European Lead -Acid battery /Lithium battery.Its ergonomic design provides agility ,visibility,durable and reliable tractor.One of the unit designs is that it has three antenna type safety switches,similar to other raised cab heavy tractor.Any one of these touches an obstacle,it will stop the vehicle completely.This will prevent any accident happened .We use Dana front and rear axle,AC motor controller from European.The driving cab is with 360 degree visibility.It is a reliable,economic and suitable for narrow body operation. Max Towing Pull :160kN Dimension(mm):5900*2135*1850(with optional cab) Battery: HOPPECKE or FAAM Front & rear axle: DANA or Kessler AC motor control : CURTIS MIn turning radius(mm): 3500 Ground clearance (mm):220 Recharging time(h): 8 Travelling distance(km): 80-100 Screen: imported display screen size 8” Braking system: hydraulic power system, disc braking . Steerring system: 1. imported hydraulic power system, 4 models setting for the steering 2. Dual hydraulic n=braking system Battery: Lead- acid battery or lithum cell With management system( bms) Parking brake: mechanical braking system, hydraulic type braking system Tow hitch height:300-450mm Tire: pneumatic tire
