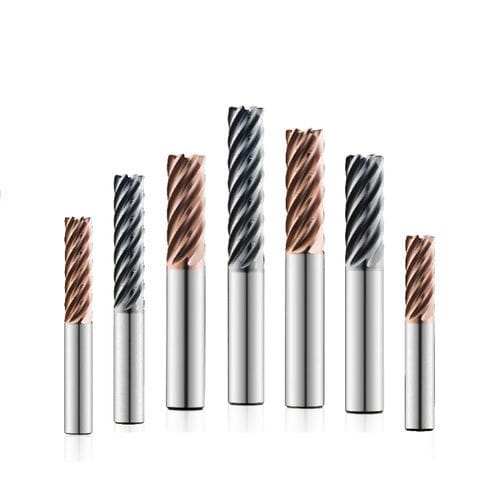

Titanium alloy milling cutter H-Carb

for steelfor stainless steelfor aeronautics

The H-Carb 7-Flute High Efficiency end mill specializes in deep axial trochoidal and high-speed machining applications offered at various lengths of cut. The specialized core and flute design improves rigidity and chip flow while reducing deflection. The seven-flute design allows for superior finishes at higher speed and feed rates versus 5 and 6 flute tools. Adding additional benefits to the series is the through-coolant option offering boosted performance and improved chip evacuation. Features Through Coolant Options The central hole delivers coolant effectively to the cutting zone. Enhances chip removal when pocketing or slotting. Depth of Cut - Deep Pocket Machining Available in 3 lengths of cut (2.5xD, 3xD, 4xD). Specializes in deep axial trochoidal and high-speed milling applications. Fluting & Core Specialized seven flute design with an optimized core which improves rigidity, chip flow and reduces deflection. Chip Breaker design breaks up chips from the long flute length allowing for better chip flow and evacuation in deep pocketing operations. Coatings Exclusive Ti-NAMITE®-M coating for higher heat resistance to enhance tool life in difficult-to-machine materials like Titanium. Available with Ti-NAMITE®-A coating for superior wear, edge build-up resistance and extended tool life in difficult-to-machine materials like Stainless Steel.
