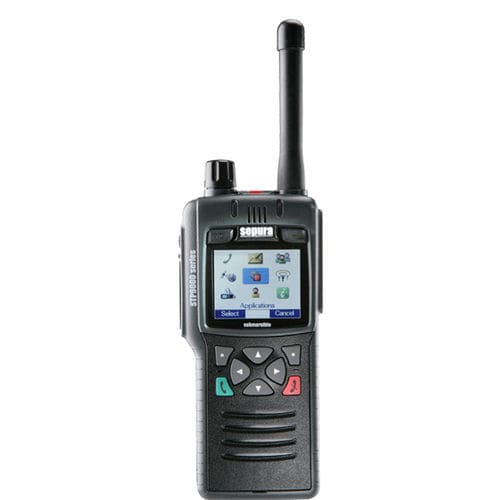

Radio transceiver STP9100

UHFfor aircraftfor airport

The STP9100 hand-portable combines extreme ruggedness with powerful audio and RF to users who require a high specification, reliable radio, but prefer a more streamlined user interface. Waterproof, submersible, dust-proof and marine-hardened, the IP67-rated STP9100 continues to work after submersion in up to 1m of water for up to 30 minutes. The reduced-keypad hand portable radio boasts powerful audio, exceptional battery life and safety-enhancing features such as Wake-on-Alarm. Haptic technology produces a physically detectable response to the press of a key and the 'Twist and Zoom' feature allows images to be viewed full-screen when the radio's orientation is changed. DIMENSIONS Height: 133mm Width: 61mm (54mm) Depth: 32mm (standard battery) Depth: 37.5mm (high-capacity battery) WEIGHT With standard battery: 250g With high-capacity battery: 275g FREQUENCY BANDS 380-430MHz – STP9138 407-473MHz – STP9140 806-870MHz – STP9180 POWER SUPPLY 7.4V (nominal) lithium polymer battery packs Intelligent reporting batteries 1160mAh standard battery 1880mAh high-capacity battery RF PERFORMANCE RF Power: MS power class 3L (1.8 Watts) RF Power customisable for: TMO/DMO/repeater Adaptive Power Control supported Receiver class: A & B Receiver static sensitivity - 112dBm (-115dBm typical) Receiver dynamic sensitivity - 103dBm (-106dBm typical)
