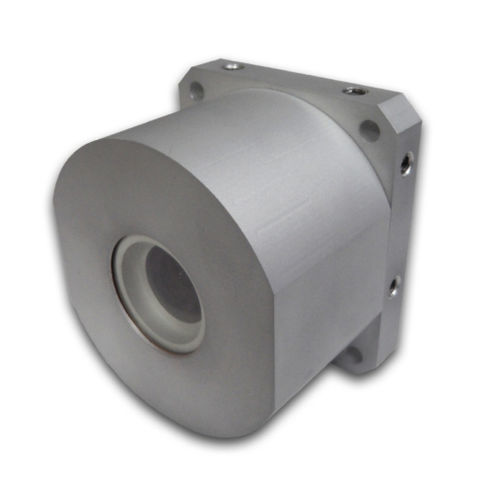

Ruggedized camera RCC-HD13EV/X.X

for airporthigh-resolutioncompact

The RCC-HD13EV/X.X camera is a very rugged and compact high definition color CMOS video camera (X.X =lens focal length, see below) capable of operating in a hard vacuum (10ˉ⁶ Torr). The camera electronics are well protected inside an environmentally sealed aluminum housing, with a scratch resistant sapphire window. The housing provides complete EMI protection, and can "breathe" through a humidity filter, minimizing maintenance requirements during long term storage. Features: • 1/3" Color CMOS Sensor • 1280 x 720 HD Resolution • 720p/60, 720p/59.94, 720p/50 selectable • Vacuum Capable (10ˉ⁶ Torr) • Small and Light Weight • Automatic Gain Control • Backlight Compensation • Pixel Defect Correction • Environmentally Sealed Housing • Optional Digital Zoom Environmental Specifications* Storage Temperature -46° to +71° Operating Temperature -40° to +60° Altitude (Norm.Operational)* Sea Level to 10ˉ⁶ Torr Altitude (Non-Operational)* -15,000 ft. to 10ˉ⁶ Torr Explosive Atmosphere Sea Level to 10ˉ⁶ Torr Storage Humidity 95% (50°C) to 85% (38°C) Operating Humidity 5% to 100% relative humidity (condensing) Vibration (Operational) MIL-STD 810C, 514.2 (VIII), 70 hrs Shock (Operational) MIL-STD 810C, 516.2 (I), 30g, 3 dir EMI MIL-STD-461, Radiated RS02, RS03, 50V/mRE02 Specifications Image Sensor 1/3” type Color CMOS Effective Pixels 1329 (H) x 1049 (V) Resolution 1280 x 720 (720p) Sync. System Internal Video Output Signal Analog Component 1Vp-p, 75Ω Video Output Frequency (Selectable)
