Ruggedized camera RBC-D4E

for airporthigh-resolutioncompact

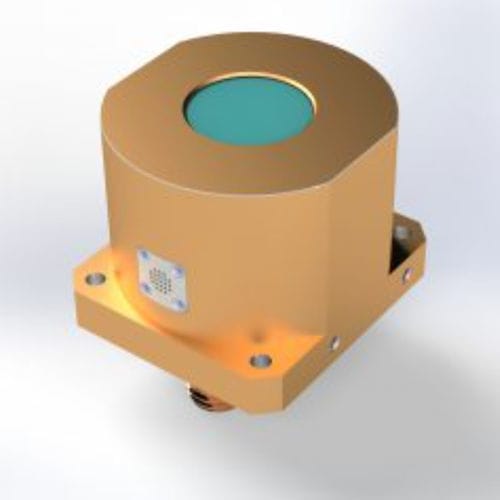

The RBC-D4E camera is a ruggedized and compact High Definition color digital video camera. The camera is well protected inside an environmentally sealed aluminum housing, finished in Lusterless Desert Tan and with a scratch resistant sapphire window. The housing provides complete EMI protection, and can “breathe” through a humidity filter, minimizing maintenance requirements during long term storage. The camera has a dual concurrent legacy analog (NTSC/PAL) video output, which allows the cameras to support legacy installations with a path to digital high definition video output. The concurrent SDI video output supports SMTPE standards supporting 1080p60, 1080p50, 1080p24, 1080i60, 720p60, 720p30 digital video output modes. Typical Applications • Suitable for both water based, ground and air vehicles • Remote Mission viewing • Mission Recording and Analysis Features and Electrical Specifications • Sony IMX265 Electronic Global Shutter sensor. • SDI digital output supporting 3G-SDI (3.0Gbps) and HDSDI (1.5 Gbps) • Lens mount supporting a wide array of C and CS mount lenses • Primary SDI digital video output • SMPTE 424M 3Gbps SDI video output support ing 1080p30fps video • SMPTE 292M 1.5 Gbps SDI video output support ing 1080p30 video output • secondard video output • NTSC or PAL selectable video output • 12V DC power input • 3.5-4.0 W power consumption depending on video output mode • 5.5mm lens - other lens options available
