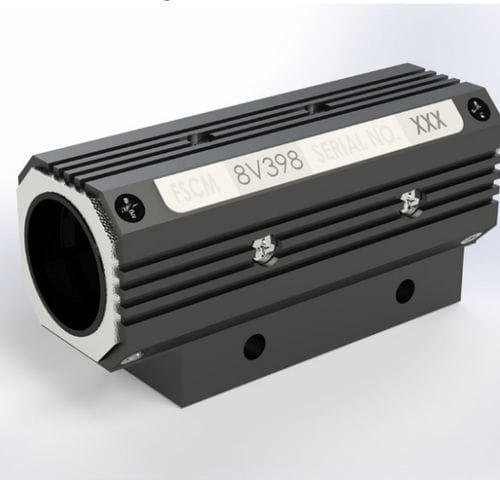

Infrared camera RSC-CC103 NIR

ruggedizedfor airportcompact

The RSC-CC103 is a NTSC / PAL analog output Near Infrared camera that offers outstanding sensivitity across the visible and near infrared spectrum. This camera offers compatability with the legacy Sekai RSC-BC103. This camera is excellent for airborne applications and other harsh environments. Low light sensitivity is <3 lux at F1.2 thanks to the modern Global shutter CMOS sensor. This camera offers many standard features in a compact package including composite or Y/C output high speed shutter TTL (through-the-lens) auto/manual white balance, and AGC on/off functionality. The camera supports user selectable NTSC or PAL outputs. The RPS-77 and RPS-78 are available for operation with MIL-STD-704 power sources. These rugged power supplies provide regulated 12 VDC to the camera from 20-30 VDC unregulated sources Environmental Specifications* Military Standard: MIL-STD-810G Storage Temperature -54°C to +85°C (Const & Cycling) Operating Temperature -40°C to +65°C startup & continuous Operating Temperature -54°C after startup at -40°C Altitude (Operational) Sea Level to 60,000 ft Altitude (Decompression) 8,000 to 40,000 ft, 15 sec** Humidity (Aggravated) 95% (60°C) to 85% (30°C) Humidity (Operating) 5% to 95% Relative Humidity (RH) at 30°C (non-condensing) Explosive Atmosphere Sea Level & 40,000 ft +55°C Vibration (Operational) Jet Aircraft, 14.2 G’s RMS Random 15-2000Hz Helicopter sine on random UH-60 type profile Acceleration (Operational) 40 G’s Forward, 20 G’s in other axes Shock (Operational) 40 G’s 15-23ms SRS Shock 3 shocks each direction EMI MIL-STD-461F Radiated Emissions (RE102) Fixed Wing and Helicopter Specifications • 1/2.9” Global Shutter Monochrome CMOS sensor
