Airport scanner SA5030A

for explosives detectionbaggageinspection

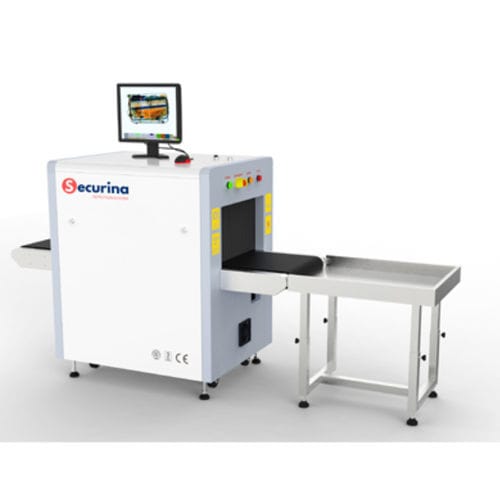

Securina SA5030A Single Energy X-Ray security inspection equipment is a economical security inspection device which makes use of the penetrating power of X-Ray to implement the rapid inspection of the packing baggage and goods. Securina SA5030A is a compact X-Ray Inspection System with tunnel dimensions 50 x 30 cm . The SA5030A is the small system in the Securina X-ray System series and is designed for screening objects ranging from mailroom parcels to purses and backpacks. Securina SA5030A x-ray inspection system recommend install at various checkpoint locations including government buildings, private hotels, and corporate mailrooms. Mounted on a compact frame with heavy duty roller casters, the SA5030A can be easily relocated to any site in need of an immediate screening solution. Security x-ray machine General Specification: 1. Tunnel Size: 500(W)*300(H)mm 2. Conveyor Speed: 0.22m/s 3. Conveyor Max Load: 100kg 4. Dose per Inspection: <2.9μ Gy/h 5. Resolution: <0.101mm Metal Wire 6. Spatial resolution: Level: Dia1.0mm, Vertical: Dia1.3mm 7. Penetrate resolution: Dia 0.511mm 8. Penetration: 8-10mm Steel 9. Film Safety: Guarantee ISO1600 Film 10. X-ray Leakage: <0.1 μ Gy/h (at a distance of 5cm From external housing) X-ray inspection system Generator: 1. Generate direct: Upward 2. Generate anger: 80 degree 3. Anode Voltage: 80Kv 4. Anode power: 0.2 to 1.0mA 5. Cooling / Duty Cycle: Oil Cooling /100%
