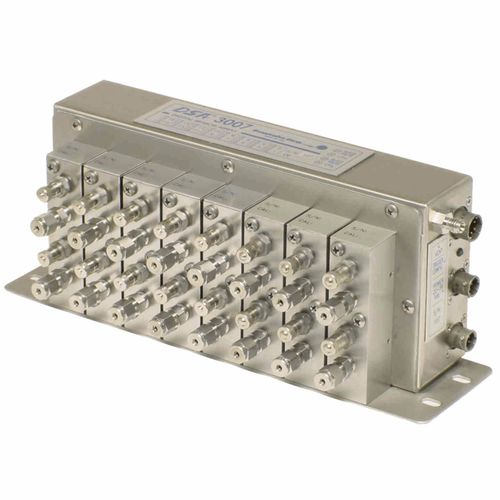

8-channel pressure scanner DSA3207-PTP

gasliquidsEthernet

+/- .12% full scale long term accuracy (15-300psig) 850 Hz/channel sampling speed “Network Ready” Ethernet TCP/IP, FTP, & UDP Multiple pressure ranges available per DSA Up to 1500 psi pressure range Auto zero offset correction “All Media” compatibility (wet/dry) IEEE1588-2008v2 PTP compliant Application The DSA3207-PTP is used to measure up to 16 liquid absolute or gauge pressures (psia or psig). Pressures are input into 1/8 inch Swagelok® compression fittings via copper, steel, or plastic tubing. The pressure transducers are isolated from the media on the measurement side of the sensor by a stainless steel diaphragm, wet/dry. Typical applications include liquid measurements for jet fuel and oil on a gas turbine, flow measurement across an orifice by measuring the high and low side of the orifice, tidal research facilities and for tow tanks. If liquid reference measurements (wet/wet) are required, Scanivalve’s DSA3307-PTP is an excellent option. Overview The model DSA3207-PTP Digital Sensor Array pressure acquisition module incorporates 2 to 16 temperature compensated media isolated piezoresistive pressure transducers (psig or psia). This model contains a stainless steel diaphragm isolating the measurement side of each pressure transducer from the media. The back side of the gauge transducer must be dry (wet/dry).
