Eddy current crack detector ELOTEST B310/ M2 V3/ M3

for aeronautics

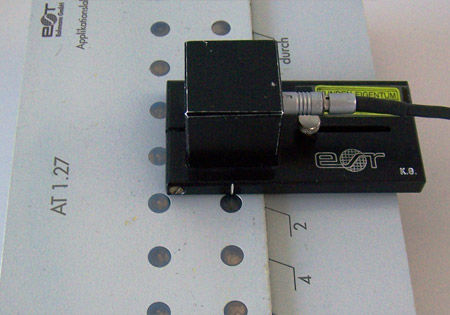

Riveted metal plates testingConstruction of riveted metal platesTesting task: Crack testing on riveted aluminum plates. There are cracks in the 2nd position, starting from the hole for the rivet. The plate is 2 mm thick.Riveted metal plate testingTest equipment:Equipment: ELOTEST B310/ M2 V3/ M3Sensor: MDK 1-23Adapter: B3-RSLead: EK-2-HF/1The guidance slot is set with the end stop so that the “Sensor centre” marking is on the centre line of the row of rivets. The sensor is moved along the row of rivets.
