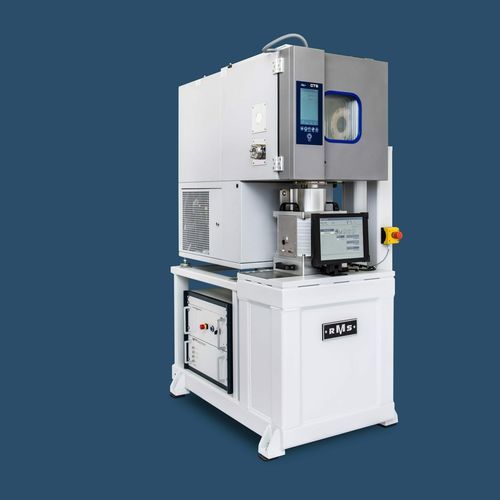

Torsion testing machine SDL 1400

vibrationautomaticaeronautical

EXTREMELY ACCURATE, STABLE, DYNAMIC AND INDIVIDUALLY TAILOR MADE UPON CLIENT REQUEST Our motion simulators are test systems specially tailored to your requirements. The RMS 1400 series is designed to test specimens by applying fixed rotation. It is possible to measure gyroscopes, acceleration or rotation speed sensors by using the turntables as high-precision reverence. PERFORMANCE DATA Angle Speed. [°/s] 0 – 2100 Max Acceleration [°/s] 50.000 Max Torque Continuous [Nm] 23 Payload table beam [kg] 20 ACCURACY Standard deviation of speed rotation [ < 0,002 Ø Stability related to the set value [: < 0,001 measured +/- 1500°/s <± 0,001 Position absolute accuracy <± 24“ Positioning repeatability <± 5“ DIMENSIONS Height [mm] 1800 – 2200 Lenght [mm] 800 – 1400 Wide [mm] 1200 – 1500 Weight [kg] ca. 700 – 1100 Plate diameter [mm] 100 – 300
