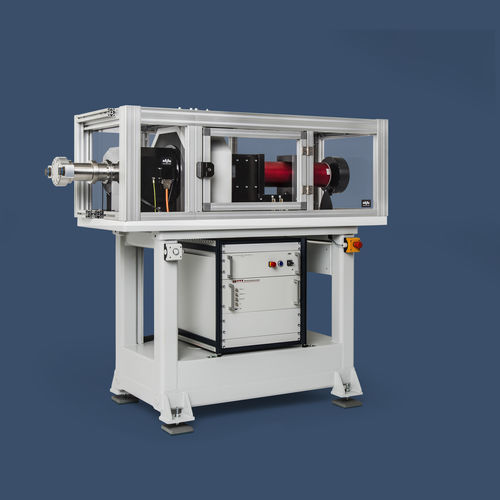

Vertical rotary table SDL2000

horizontaltiltingfor machine tools

RMS can shine with almost 60 years of expertise in the field of motion simulators. The SDL2000 series is our front runner when it comes to synchronism. With its decoupled frame, contactless data transmission on request and its extremely intuitive operation, e.g. rotation speed sensors can be measured as a highly accurate reference using the motion simulators. ADVANTAGES AT A GLANCE Robust, reliable, modular, contactless data transmission Thermally and vibrationally decoupled (isolated) High resolution: values ​​up to 0.00001 ° can be measured High control quality – very dynamic system 2nd exhibition level optionally available PERFORMANCE DATA Yaw rate [° / s] 0 – 2000 Max. Acceleration [° / s²] 60,000 Max. Torque [Nm] 24 Payload table beam [kg] 20 ACCURACY Standard deviation of the rotational speed [ <0.001 Ø Deviation of the turning speed [ <0.001 Measured at ± 720 ° / s Position absolute accuracy [arcsec] <± 10 Position repeatability [arcsec] <± 5
