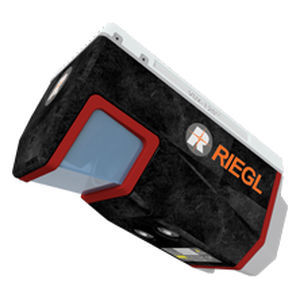

Non-contact laser scanner VUX-120²³

for aeronauticsmeasurementairborne

The RIEGL VUX-120²³ is a lightweight and versatile airborne laser scanner offering a wide field of view of 100 degrees and an extre-mely high pulse repetition rate of up to 2.4 MHz. Thus, it is perfectly suited for high point density corridor mapping applications. The measuring beam of the RIEGL VUX-120²³ is consecutively emitted in three different directions: it alternates from strictly nadir, to +10 degrees forward, and to -10 degrees backward. This allows data acquisition with an unrivaled completeness in data capture, especially in challenging environments with vertical surfaces and narrow canyons. The scanner provides an internal data storage capacity of 1 TByte and a removeable CFast card and is equipped with interfaces for integration of an external INS/GNSS system. Additionally, interfaces for up to two optional external cameras are available. The sophisticated design of the RIEGL VUX-120²³ allows smooth integration on UAS/UAV/RPAS, small manned aeroplanes (like gyro-copters), but also on helicopters. It is offered both, as stand-alone UAV LiDAR sensor and also in various fully-integrated UAV-based laser scanning system configurations with appropriate INS/GNSS system and optional cameras. This allows the scanner to perfectly meet all the specific requirements of the customers‘ applications. Main Features laser pulse repetition rate up to 2.4 MHz measurement rate up to 2,000,000 meas./sec scan speed up to 400 lines/second operating flight altitude up to 720 m / 2,350 ft Field of View up to 100° compact & lightweight (2 kg / 4.4 lbs) Nadir/Forward/Backward Scanning for unrivaled completeness of scan data even on vertical structures and narrow canyons
