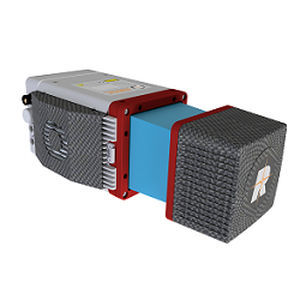

Airborne laser scanner miniVUX-3UAV

non-contactmeasurementfor drone

The The RIEGL miniVUX-3UAV is an extremely lightweight airborne laser scanner, designed specifically for integration with UAS/UAV/RPAS. The sensor offers a selectable 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR). With 300 kHz PRR, it provides up to 100,000 measurements per second at 120° FoV and thus a dense point pattern on the ground for UAV-based applications that require the acquisition of small objects. The small and sophisticated design of the stable aluminum housing offers various integration possibilities with platforms that offer restricted space or payload capabilities. The 360° field of view allows complete acquisition of the environment. An easy-to-remove SD card for data storage, and/or the option for streaming the scan data via LAN-TCP/IP interface, in combination with the modest power consumption of the scanner, enable straight-forward integration with most UAS/UAV/RPAS types. The RIEGL miniVUX-3UAV makes use of RIEGL’s unique Waveform-LiDAR technology, allowing echo digitization and online waveform processing. Multi-target resolution is the basis for penetrating even dense foliage. As a further special feature, the wavelength is optimized for the measurement of snowy and icy terrain. In addition to the stand-alone version of the miniVUX-3UAV, RIEGL also offers fully-integrated system solutions. Main Features 100 kHz / 200 kHz / 300 kHz Laser PRR selectable measurement rate up to 200,000 measurements/sec scan speed up to 100 scans/sec very compact & lightweight (1.55 kg / 3.4 lbs) up to 360° field-of-view robust aluminum housing, ready to be mounted on multi-rotor, rotary-wing, and fixed-wing UAVs
