Reporting software MODUS™

spark optical emissionCAD data analysisCAD

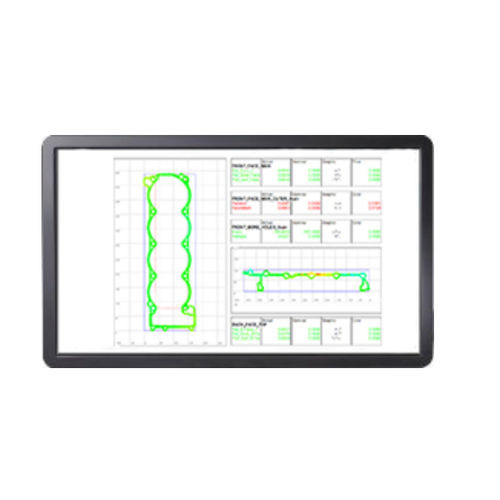

MODUS provides traditional text reports, whilst its graphical reporting delivers a wide range of full-colour pictorial inspection reports, using the CAD model or representation of the component. Inspection results can also be output in a range of formats for further analysis. Reporting features Clear, concise graphical reporting With fully user-configurable header, labels, text and images. Multi-part inspection A single report can provide a complete history of a series of components, including results tables and statistics. Fast report creation New reports can quickly be created from scratch or based on existing layouts, using wizards that provide assistance with page layouts. Flexible exchange of inspection data Results data can be output for use with 3rd party applications in a range of formats including Excel (CSV), ASCII text, DMIS, internet-friendly XML or directly to the Microsoft® SQL database. Statistical analysis Users of the leading Q-DAS SPC package are fully supported with a simple, user-configurable operator's interface from which type 1 and 2 studies can be launched.
