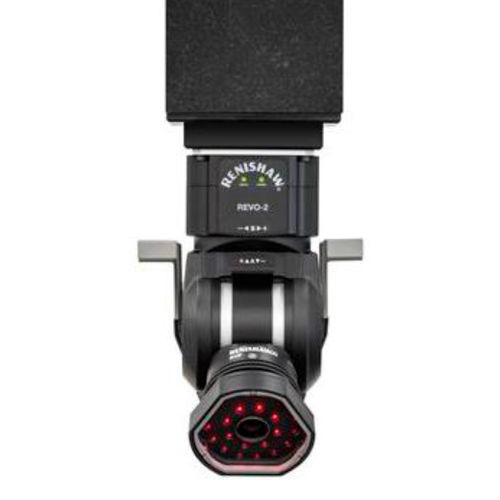

Scanning touch probe REVO-2 RVP

CMMdigitalfor the aerospace industry

Increased throughput, high performance 5-axis measurement for non-contact inspection applications. Non-contact measurement RVP probe with VM10 module For certain applications, non-contact inspection provides clear advantages over traditional tactile probing techniques. Thin sheet metal parts or components with large numbers of holes – sometimes as small as 0.5 mm– are parts which are not suited to tactile measurement. The REVO-2 RVP probe adds non-contact inspection to the existing touch-trigger, high-speed tactile scanning and surface finish measurement capability of the REVO system and provide exceptional improvements in throughput and CMM capability by utilising the 5-axis motion and infinite positioning of the REVO-2 head. non contact vision probe for REVO-2 VM10 and VM11 RVP modules RVP is the probe component of the system that houses a 1.3 megapixel global shutter CMOS sensor and digital signal processor. The CMOS sensor inside the probe captures large amounts of light even with short exposure times; leading to quicker image capture and faster measurement times. The RVP system features two vision modules which provide inspection capability for different applications. The most suitable tool can be selected for the features being measured.
